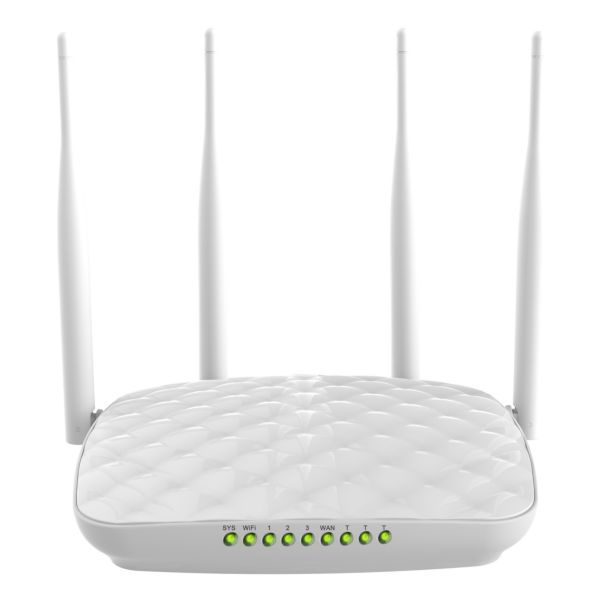

Tenda FH456 802.11n High-Power WiFi Router is our salute to the medium and large size house. 4x5dBi high-performance omni-directional external antennas and amplifier technology ensure fast, stable and wide range WiFi signal up to 300Mbps and whole-home coverage for your ultimate surfing fun. The considerate timer management realizes turn on/off your router automatically, non-hassle installation, bandwidth control and WiFi security designs all are for your smart and fashionable networking life.
Dimension 6.74*6.74*1.43in /171.3*171.3*36.4mm
Power Output DC 9V==0.6A
Power Input 100-240V—50/60Hz 0.3A
Button 1*WPS/RST 1*WIFI
Indicator SYS ?WiFi? 1? 2? 3? WAN ?WPS? T? T
Antenna 4*5dBi external antennas
Interface 1* 10/100M Ethernet WAN port; 3* 10/100M Ethernet LAN ports
Standard&Protocol IEEE802.11/b/g/n
Wireless Features
Operating Frequency 2.4GHz
Software Features
Other Function
1* FH456 router, 1* power adapter, 1*quick installation guide, 1* Ethernet Cable
Default Settings Password:admin IP address: 192.168.0.1
Wrieless Security WPA/WPA2-PSK AES, TKIP, TKIP
VPN Pass-through Support
Operating Mode Router mode, WISP, Client+AP
Others
Associated Products A301 Wireless N300 Universal Range Extender
Certification CE?RoHS?FCC?EAC?NOM?UKrSEPRO
Package Content 1* FH456 router, 1* power adapter, 1*quick installation guide, 1* Warranty card.
Operation System Windows 2000 with latest upgrades;IE5.0 or Firefox1.0 with latest upgrades;Network card has been installed
Storage Humidity 5%~90% RH non-condensing
Storage Temperature -40?~70?
Operating Humidity 10%~90% RH non-condensing
Operation Temperature 0?~40?
WAN Connection Type Dynamic IP;Static IP
Speed 300Mbps

## ^^
