Tip procesora
- Chipset Intel H510
- CPU SUPPORT Socket 1200 for 10th / 11th Gen Intel Core™, Pentium and Celeron processors
Format ploče
- Micro ATX
Memorija
- Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200
- 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
- Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Slotovi za proširenje
- 4 x SATA III Connector (6Gb/s)
- 1 x M.2 (M Key) Socket:
- Supports M.2 Type 2242/ 2260/ 2280 SSD module.
- Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD
- * When using SATA SSD module on PCIe-M2_1 slot, the SATA_1 connector will be disabled.
Zvučna kartica
- CODEC Realtek ALC887
- 7.1 Channels, High Definition Audio
Ostalo
- INTEGRATED VIDEO: Supports DX12
- Supports HDCP
- LAN: Intel I219V
- 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
- USB: 2 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)
- 6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers)
- EXPANSION SLOT: 2 x PCIe 3.0 x1 Slot
- 1 x PCle 3.0/4.0 x16 Slot
- *The PCle 4.0 only depends on Rocket Lake CPUs.

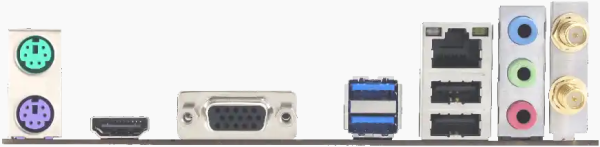

- REAR I/O: 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x HDMI Port
- 1 x VGA Port
- 2 x USB 3.2 (Gen1) Ports
- 4 x USB 2.0 Ports
- 1 x LAN port
- 3 x Audio Jack
- INTERNAL I/O: 4 x SATA III Connectors (6Gb/s)
- 1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
- 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
- 1 x 8-Pin Power Connector
- 1 x 24-Pin Power Connector
- 1 x CPU Fan Connector
- 1 x System Fan Connector
- 1 x Front Panel Header
- 1 x Front Audio Header
- 1 x Clear CMOS Header
- 1 x COM Port Header
Garancija
- 2 godine
